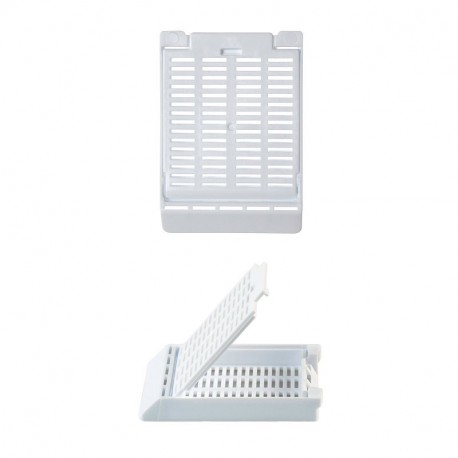

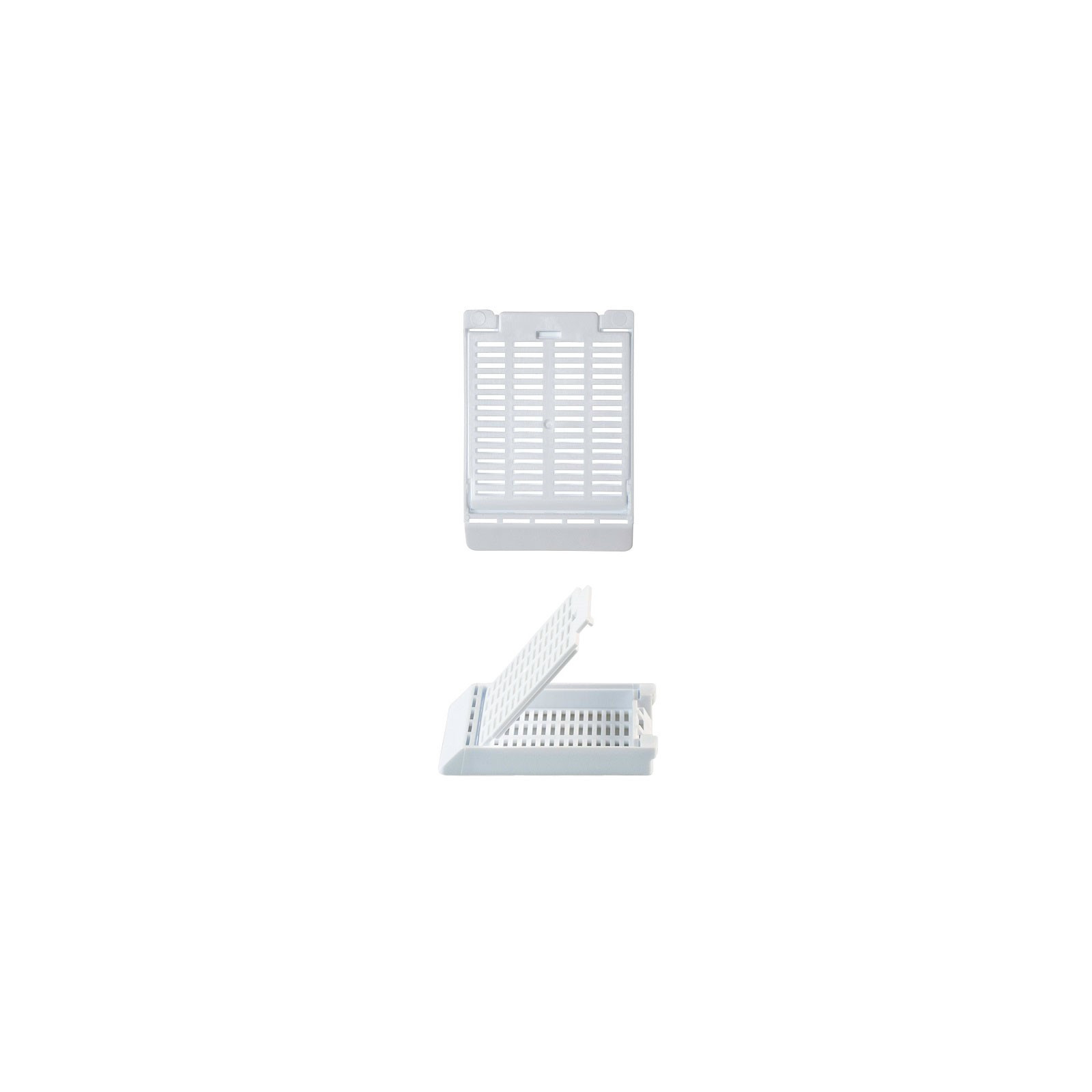

M509 - Slimsette™ Tissue cassettes

  • Made of acetal
  • Recessed cover, a great space-saving feature
  • Easy-to-remove pre-attached disposable cover
  • Unobstructed writing area at a 45° angle

More details

Select from the below options

Similar to the design of the M507 model, it incorporates a unique recessed cover, a great space-saving feature allowing more cassettes to be stacked in automatic labeling machines and in storage cabinets.

Molded from acetal, these cassettes keep specimens safely submerged in liquid and are resistant to the chemical action of most histological solvents. The SLIMSETTE™ ensures efficient fluid exchange and drainage thanks to 114 openings each measuring 1 x 5 mm. The anterior writing area is slanted at a 45° angle.

Each case contains 3 dispenser boxes of 500 cassettes with covers assembled.

Fluo Pink M509-16, Fluo Green M509-17, and Fluo Yellow M509-18 are also available. Minimum quantities apply. Contact us for more details.

Specifications

Material Acetal
Length (mm) 41 mm
Width (mm) 28.5 mm
Height (mm) 6 mm
Angle 45 degree
CE - IVD Yes
Qty/Inner box 500
Qty/Cs 1500
  • Video
  • Click on a thumbnail to load the video

    Related Products

    Brochure

    IFU Cassettes

    Instruction For Use

    Download (1.31M)

    Technical Data Sheet

    3D Drawings

    To successfully view the 3D PDF, open the document with Adobe Acrobat.

    Step 1: Right click on the downloaded 3D document and choose to open with Adobe Reader
    Step 2: Once opened, select Approve at the top right under Options
    Step 3: The 3D image will appear, begin moving it around as you please

    Download Acrobat Reader here
