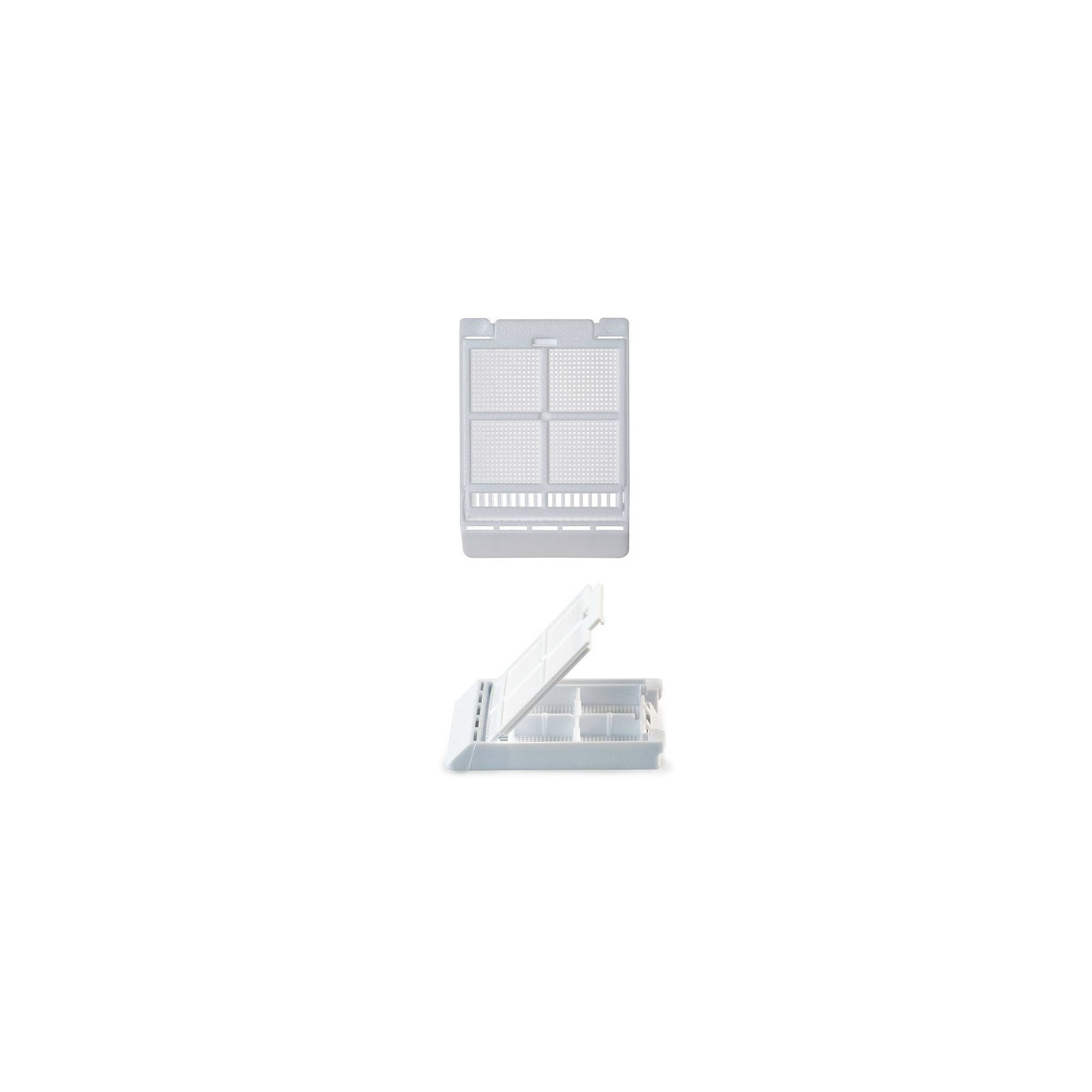

M508 - Micromesh™ Biopsy cassettes with 4 compartments

  • Made of acetal
  • With 4 compartments (13 x 13 mm)
  • No biopsy pad necessary - 1,676 x 0.38 mm square openings maximizing fluid exchange
  • Recessed cover, a great space saving feature
  • Anterior writing area at a 45° angle
  • Easy-to-remove pre-attached disposable cover

More details

Select from the below options

The Micromesh™ offers 1676 square openings (0.38 mm) allowing for greatly improved fluid exchange and drainage without having to use biopsy pads. This model is similar to the M507 but cassettes have four square compartments each measuring 13 mm. Large anterior slots in both cassette and cover ensure that the Micromesh™ biopsy cassette will sink rapidly. The cover does not protrude above the cassette, a great space-saving feature allowing more cassettes to be stacked in automatic labeling machines and tissue processors.

Molded from acetal, these patented cassettes keep specimens safely submerged in liquid and are resistant to the chemical action of most histological solvents. The anterior writing area is at a 45° angle to make the cassette more suitable to be used with automated cassette printers.

Each case contains four dispenser boxes of 250 cassettes with covers assembled.

Fluo Pink M508-16, Fluo Green M508-17, and Fluo Yellow M508-18 are also available. Minimum quantities apply. Contact us for more details.

Specifications

Material Acetal
Properties With four compartments each measuring 13 mm
Angle 45 degree
CE - IVD Yes
Qty/Inner box 250
Qty/Cs 1000
